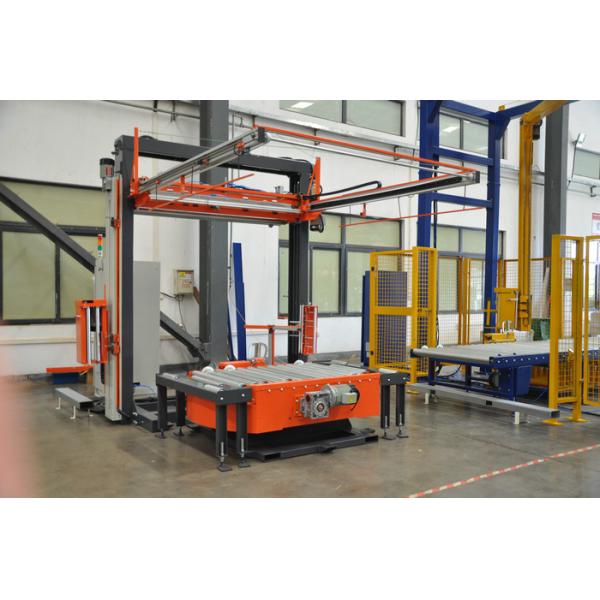

High Power Auto Pallet Wrapper / Fully Automatic Stretch Wrap Machine

WUHAN MECUS MACHINERY CO LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

High Power Auto Pallet Wrapper / Fully Automatic Stretch Wrap Machine

  • 1
  • 2

Brand Name : MQSPACK

Model Number : MP207CR

Certification : CE

Place of Origin : Hubei Wuhan

MOQ : Negotiation

Price : Negotiable

Delivery Time : 15-20 working days

Packaging Details : wooden case/iron frame

Type : Auto Pallet Wrapper

packing material : stretch film

Feature : High Power

Power : 1.35kw

Pre-stretch ratio : 200%

Weight : 800kg

Cut method : heater

Effiency : 20-40 pallets/h

Contact Now

High Power Auto Pallet Wrapper / Fully Automatic Stretch Wrap Machine


Auto Pallet Wrapper Main features


1) Automatic stretch film apply & cut, pneumatically driven. Remote control device fitted.
2) Powered pre-stretch film carriage, ratio 250%.
3) Dual chain structure column, carriage speed vairable.
4) Automatic wrapping according to pre-set parameters. Friendly user interface for setting wrap cycles, top/bottom cycles & film tension. Manual wrap mode as an option.
5) Auto height detection, turntable home position, forklift sockets for easy moving.
6) Dual limit switches on top & bottom to provide better safety protections.

Auto Pallet Wrapper Specifications


Turntable diameter1650mm,optional 1800mm
Wrapping height2100mm,optional 2400mm,2600mm
Loading weight2000kg
Packing speed30-50 pallets/h
Turntable speed0-15rpm,speed variable,turntable soft start & soft stop
Turntable height87mm
Cut methodheater
Carriage speed3m/min
ControlPLC
Working modeautomatic remote control
Power1PH 220VAC,50/60HZ,20A,1.35KW



Detailed image
1. Carriage
Powered pre-stretch film carriage, ratio 250%.
Dual chain structure column, carriage speed vairable.


2. Clamp
Clamp the film when wrapping is going to end.


3. Cutter
Automatic stretch film cut, pneumatically driven. Remote control device fitted.

4. Optional:Ramp
Easily loading for manual forklift.



Service
1. Pre-sale service:
1) We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2) We will first check customer's good and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3) We will recommand and offer machine according to customer's use and purchase budge.
2. In-sale service:
1) We will supply each manufacturing step photo for customer checking on time.
2) We will prepare packing and shipment according to customer's needing inadvance.
3) Testing the machine and making video for customer's checking.
3. After-sale service:
1) We will guarantee the machine quality for one year.
2) We provide free training and answer customer's question on technology in time.


FAQ
1. What about your wrapping machine quality?
We are the manufacturer with 20 years of experience; all our machine already get SGS and CE certificate; already exported into many countries and areas; already exported into many countries and aress; already got many customer's reputation.
2. What about your wrapping machine price?
Anytime we will make quality as factory life, no matter price is good or not for us.Quality is first, on the top quality basis. Sure you will get reasonable and satisfied price.
3. Can you send me the video to show how the machine work?
Certainly, we have made video of every machine and uploaded them by our chain address.Please contact with us, we will send you machine video.
4. What about your installation service and sales service for wrapping machine?
(1) Guarantee is one year, we will supply spare parts or send engineer to your side if you need, we will give you service anytime, 24 hours, 7 days.
(2) We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
(3) It is free to train your worker in our factory or in your side or by video.
