Inline Top Sheet Automatic Stretch Wrapper PLC And Program Sequence

WUHAN MECUS MACHINERY CO LTD

Inline Top Sheet Automatic Stretch Wrapper PLC And Program Sequence

  • 1
  • 2
  • 3

Brand Name : MQSPACK

Model Number : MPD-17T

Certification : CE

Place of Origin : CHINA

MOQ : Negotiation

Payment Terms : T/T

Supply Ability : 60 UNITS per month

Delivery Time : 40 work days

Packaging Details : Plywood Crate / Steel Frame

Price : Negotiable

Type : top sheet dispenser

Packing material : pe stretch film

Voltage : 380V

Power : 1.4kw

Driven : electric

Film speed : 13m/min

Conveyor speed : 13m/min

Air pressure : 0.4-0.7Mpa

Control : PLC+touch screen+frequency converter

Warranty : 1 year

Contact Now

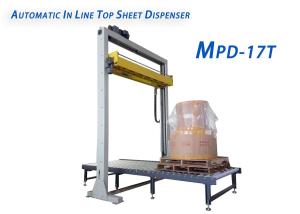

Automatic Inline Top Sheet Dispenser

MPD-17T description
This top sheet dispenser is fully automated. It can be installed over an existing conveyor within the existing wrap zone of your Stretch Wrapper. Our top sheet dispenser combined with the proper wrapping sequence will render a water proof package that can be easily stored outside.


Main features:
1. The top sheet unit features auto height sensing device, dual chain driven vertical motion, lack of top sheet alarm light. It has manual moving modes for the vertical and horizontal movements.
2. The unit comes with its own controls and includes input and output dry contacts to communicate with the existing conveyor or wrapper system.
3. The machine is usually about 500mm wider than the cargo, and the ends of the cargo are more than 250-300mm, which allows for better top wraping.


Specifications

Cargo size L1400*W1100*H2400mm max
Cargo weight 1000kg max
Film speed 13m/min
Conveyor width 1200mm
Roller specification t3.0*φ76*1200mm(inner coreφ20mm)
Roller wheelbase 118.8mm
Conveyor height 500mm
Conveyor speed 13m/min
Film φ250mm,width180mm,inner coreφ76mm
Cut method cylinder+blade
Air pressure 0.4-0.7Mpa
Power Three-phase five-wire,AC380V,50HZ
Motor up-down motor 1.5kw,film motor 0.4kw
Control PLC+touch screen+frequency converter


Package Contents
1. Complete stand alone unit with controls
2. PLC and program sequence
3. Motor control
4. Dry contact communications to link with the existing system
5. Auto height sensing photoeye
6. Lack of top sheet photoeye
7. Installation and operational manual
8. Electrical and mechanical schematics
9. 380VAC/3PH/50HZ electrical input required
(other voltage available, please consult factory)


Optional
1. Production rate based on load configuration and machine options
2. Overall dimensions of machine in operation
3. All machine specifications are subject to change without prior notice
4. Please consult your distributor for prices.
5. Please note that retrofits are to be installed by a Certified MQSPACK Technician.


Service
1. Pre-sale service:
1) We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2) We will first check customer's good and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3) We will recommand and offer machine according to customer's use and purchase budge.
2. In-sale service:
1) We will supply each manufacturing step photo for customer checking on time.
2) We will prepare packing and shipment according to customer's needing inadvance.
3) Testing the machine and making video for customer's checking.
3. After-sale service:
1) We will guarantee the machine quality for one year.
2) We provide free training and answer customer's question on technology in time.


FAQ
1.What about your wrapping machine quality?
We are the manufacturer with 20 years of experience; all our machine already get SGS and CE certificate; already exported into many countries and areas; already exported into many countries and aress; already got many customer's reputation.
2.What about your wrapping machine price?
Anytime we will make quality as factory life, no matter price is good or not for us.Quality is first, on the top quality basis. Sure you will get reasonable and satisfied price.
3.Can you send me the video to show how the machine work?
Certainly, we have made video of every machine and uploaded them by our chain address.Please contact with us, we will send you machine video.
4.What about your installation service and sales service for wrapping machine?
(1) Guarantee is one year, we will supply spare parts or send engineer to your side if you need, we will give you service anytime, 24 hours, 7 days.
(2) We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
(3) It is free to train your worker in our factory or in your side or by video.
